Standard Design Features
The standard features of our Remote Safety IO panels are designed for out-of-the-box connectivity to our Network Connected Safety PLC Platform. The design and construction of our Safety RIO Panels are built around operation for operation in Heavy Commercial and Light Industrial integrated safety applications. Optional upgrades are available to accommodate severe industrial environments and hazardous area locations (HazLoc).
All Digital Outputs include Force-Guided Safety Relays with prewired feedback to Digital Inputs, which are required to monitor the safety output Change-of-State. Digital Inputs used for safety relay feedback are separate from and in addition to the 8 / 16 / 32 inputs provided for Field IO.
All Remote Safety IO Panels include a SIL Capable Emergency Stop Mushroom style pushbutton configured to de-energize all field IO power provided from the Safety panel. These ESD button contacts are designed to be wired in series with the corresponding ESD push button located on the Safety PLC enclosure to provide remote emergency shutdown capability.
Our Standard Platform Features include:

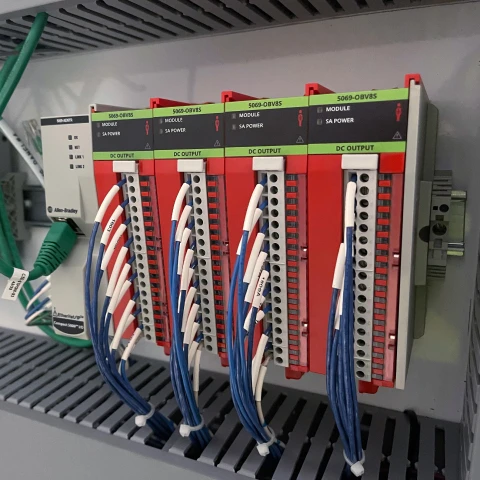

- IO Family: Compact GuardLogix IO (Point IO available)
- Network: Ethernet IP
- Digital Input: 24VDC Sinking
- Digital Output: 24VDC Force Guided Isolation Relays with wired feedback
- Analog I/O: Contact us to discuss your Analog Process Control and Safety IO requirements.
Field I/O Architecture
- Field IO Power Supply, 24 VDC, 480W (Dual on 32-Pack) with Surge Suppressor
- IO Circuit Protection: 1/4" x 1-1/4" Fast Acting Fuse
- Digital Output Isolation: Control Relay, SPDT, 8 A @ 24 VDC / 8 A @ 120 VAC (Resistive)
- Emergency Stop (ESD) Guarded Pushbutton wired to disable all Field IO Power.
Network Architecture
- Protocol: Ethernet IP
- Switch: 8-Port, Unmanaged, 100BASE-TX, Copper
Enclosure
- NEMA 4/12, IP66, Painted Carbon Steel Wall Mount Enclosures with DR Acrylic, UV-Resistant Engraved Exterior Badging and Nameplates.
- NEC General Purpose / Non-Hazardous (HazLoc Options Available)
- Branch Circuit Protection Rated Class CC Time Delay Primary Power Supply Fuse Protection
- Enclosure Interior LED Work Light
- Enclosure Mounted Panel Interface (1 Internal + 2 External 120 VAC GFCI Receptacle and 1 External Ethernet Port)
- Loss of Power Alarm Relay
- Enclosure Anti-Condensate Heater
- Surge Suppressor (120 VAC, 1 Ph, 50 kA)
- Ground System with Separate Equipment and Isolated Instrument Ground Busses
- UL 508A Industrial Control Panel Listing
- Spares "Kit" with Spare Fuses, USB Drive with Drawings and Schematics, Program Back-up (if applicable)
