Attention: Burner Management Panels are an integral part of a complete Safety System. The integrity and performance of any safety controller requires design and integration of the complete system, including all wiring methods, end-device and instrument selection, and reliability calculations with safe failure mode determination and required function test intervals. Prometrix Burner Management panels should only be installed under the design and supervision of a Qualified Engineer.

Standard Design Features

Simple combustion safeguard panels built around single-purpose safety control platforms (e.g. Honeywell 7800 "Blue Box", Fireye, or Honeywell Slate) are excellent options for single burner systems or small multi-burner ovens, furnaces, and boilers that are built for "One-Button Start" operations.

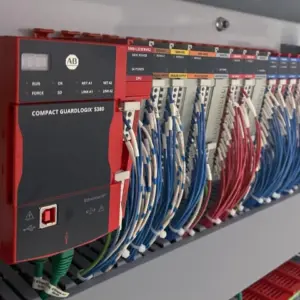

Safety PLC-based systems (e.g. Compact GuardLogix, ControlLogix, ABB) are an excellent choice for larger multi-burner systems and equipment that require advanced Process Control and Safety Functions integrated into a single panel.

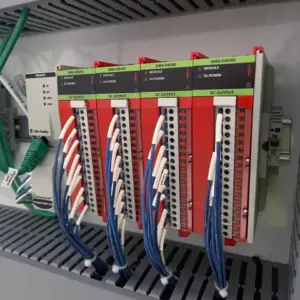

Our Safety PLC-based BMS platform is network-connectable with segregated process and safety IO circuits ideal for safety-integrated operation that provides local process control.

Safety Controller

  • Controller Family: Varies by Type
  • Operator Terminal: 10" Color Touchscreen Standard on Network Connected Controllers
  • Digital Inputs: Valve Position Limit Switches, High/Low Fuel Pressure, Over-Temperature, Purge and Combustion Fan Proof of Flow, Low/High Fire Position, Remote Run Command (Varies by Application)
  • Digital Outputs: Double Block Shutdown Valve outputs, Low Fire, Ignition Relay, Remote Alarm, Heater Running Feedback (Varies by Application)
  • Emergency Stop Push Button: Local and Remote Hardwired ESDs
  • Analog I/O: Varies by Application/Design
  • Miscellaneous:
    • Pre-Ignition Purge Timer(s)
    • Trial for Ignition Timer, Counter, and Trip Interlocks
    • Cool Down Run Timer(s) (Varies by Application)
    • Pilot Lights for Purge In Process, Purge Complete, Power, Fault, and Flame Detected
    • Pushbuttons for On/Off, Start, Fault Reset (Varies by Application)

Enclosure

  • NEMA 4/12, IP66, Painted Carbon Steel Wall Mount Enclosures with DR Acrylic, UV-Resistant Engraved Exterior Badging and Nameplates.
  • NEC General Purpose / Non-Hazardous (HazLoc Options Available)
  • Branch Circuit Protection Rated Class CC Time Delay Primary Power Supply Fuse Protection
  • Enclosure Interior LED Work Light
  • Enclosure Mounted Panel Interface (1 Internal + 2 External 120 VAC GFCI Receptacle and 1 External Ethernet Port)
  • Loss of Power Alarm Relay
  • Enclosure Anti-Condensate Heater
  • Surge Suppressor (120 VAC, 1 Ph, 50 kA)
  • Ground System with Separate Equipment and Isolated Instrument Ground Busses
  • Spares "Kit" with Spare Fuses, USB Drive with Drawings and Schematics, Program Back-up (if applicable)
