Standard Design Features
The standard features of our Remote I/O (RIO) Panel product line are designed for out-of-the-box connectivity to our Network Connected PLC Platform. The design and construction of our RIO Panels are built around operation in Heavy Commercial and Light Industrial applications. Optional upgrades are available to accommodate severe industrial environments and hazardous area locations (HazLoc).
Our Standard Platform Features include:

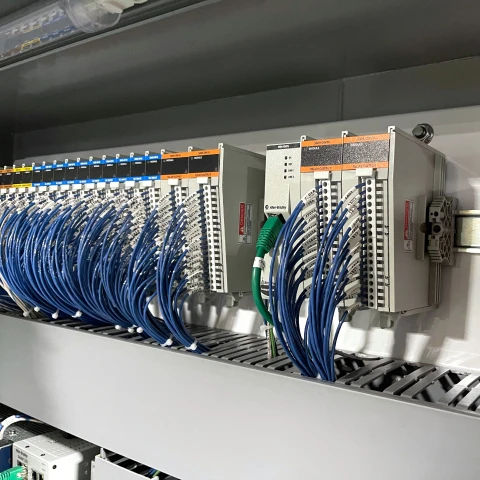

- IO Family: CompactLogix IO (Point IO available)
- Network: Ethernet IP
- Digital Input: 24VDC Sink
- Digital Output: Interposing Relay
- Analog Input: 4-20 mA / 0-10 VDC Sourcing
- Analog Output: 4-20 mA / 0-10 VDC Sourcing
Field I/O Architecture
- Field IO Power Supply: 24 VDC, 480W (Dual on 32-Pack) with Surge Suppressor
- I/O Circuit Protection: 1/4" x 1-1/4" Fast Acting Fuse
- Digital Output Isolation: Control Relay, SPDT, 10 A @ 24 VDC / 16A @ 120 VAC (Resistive)
Network Architecture
- Protocol: Ethernet IP
- Switch: 8-Port, Copper
Enclosure
- NEMA 4/12, IP66, Painted Carbon Steel Wall Mount Enclosures with DR Acrylic, UV-Resistant Engraved Exterior Badging and Nameplates.
- NEC General Purpose / Non-Hazardous (HazLoc Options Available)
- Branch Circuit Protection Rated Class CC Time Delay Primary Power Supply Fuse Protection
- Enclosure Interior LED Work Light
- Enclosure Mounted Panel Interface (1 Internal + 2 External 120 VAC GFCI Receptacle and 1 External Ethernet Port)
- Loss of Power Alarm Relay
- Enclosure Anti-Condensate Heater
- Surge Suppressor (120 VAC, 1 Ph, 50 kA)
- Ground System with Separate Equipment and Isolated Instrument Ground Busses
- UL 508A Industrial Control Panel Listing
- Spares "Kit" with Spare Fuses, USB Drive with Drawings and Schematics, Program Back-up (if applicable)
