Standard Design Features

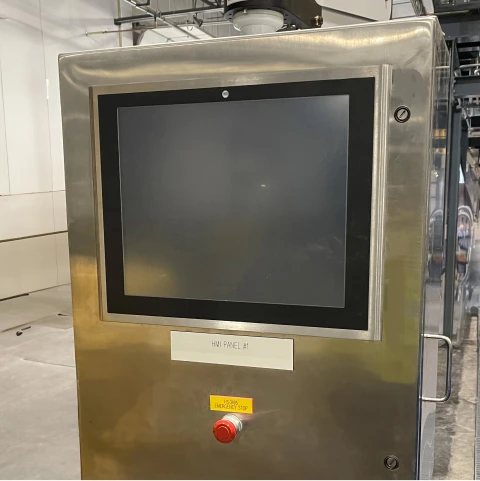

The standard features of our Remote HMI Panel product line are designed for out-of-the-box connectivity to our Network Connected PLC Platform. The design and construction of our Remote HMI Panels are built around operation in Heavy Commercial and Light Industrial applications. Optional upgrades are available to accommodate severe industrial environments and hazardous area locations (HazLoc).
Our Standard Platform Features include:
- Network: Ethernet IP
- Switch: 8-Port, Unmanaged, 100BASE-TX, Copper
Enclosure:
- NEMA 4/12, IP66, Painted Carbon Steel Wall Mount Enclosures with DR Acrylic, UV-Resistant Engraved Exterior Badging and Nameplates.
- NEC General Purpose / Non-Hazardous (HazLoc Options Available)
- Branch Circuit Protection Rated Class CC Time Delay Primary Power Supply Fuse Protection
- Enclosure Mounted Panel Interface (1 Internal + 2 External 120 VAC GFCI Receptacle and 1 External Ethernet Port)
- Surge Suppressor (120 VAC, 1 Ph, 50 kA)
- UL 508A Industrial Control Panel Listing
