Standard Design Features
The standard features of our Network Connected PLC product line are designed for out-of-the-box operation in Heavy Commercial and Light Industrial applications. Optional upgrades are available to accommodate severe industrial environments and hazardous area locations (HazLoc).
Our Standard Platform Features include:
Logic Controller
- PLC Family: Allen Bradley CompactLogix
- Processor: CompactLogix L3
- Network: Ethernet IP
- Digital Input Channels: 24VDC Sink
- Digital Output Channels: Interposing Relay
- Analog Input Channels: 4-20 mA / 0-10 VDC Sourcing
- Analog Output Channels: 4-20 mA / 0-10 VDC Sourcing

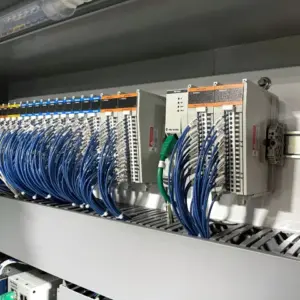

Field I/O Architecture
- Field IO Power Supply: 24 VDC, 480W (Dual on 32-Pack) with Surge Suppressor
- I/O Circuit Protection: 1/4" x 1-1/4" Fast Acting Fuse
- Digital Output Isolation: Control Relay, SPDT, 10 A @ 24 VDC / 16A @ 120 VAC (Resistive)
Network Architecture
- Protocol: Ethernet IP
- Switch: 8 Port, Copper
Enclosure
- NEMA 4/12, IP66, Painted Carbon Steel Wall Mount Enclosures with DR Acrylic, UV-Resistant Engraved Exterior Badging and Nameplates.
- NEC General Purpose / Non-Hazardous (HazLoc Options Available)
- Branch Circuit Protection Rated Class CC Time Delay Primary Power Supply Fuse Protection
- Enclosure Interior LED Work Light
- Enclosure Mounted Panel Interface (1 Internal + 2 External 120 VAC GFCI Receptacle and 1 External Ethernet Port)
- Loss of Power Alarm Relay
- Enclosure Anti-Condensate Heater
- Surge Suppressor (120 VAC, 1 Ph, 50 kA)
- Ground System with Separate Equipment and Isolated Instrument Ground Busses
- UL 508A Industrial Control Panel Listing
- Spares "Kit" with Spare Fuses, USB Drive with Drawings and Schematics, Program Back-up (if applicable)
